Rear Brake/Tail Light Lamps for original Land Rover Defender - Late Type

Replacement Rear Brake/Tail Lights (Late Type)

for Land Rover Defender

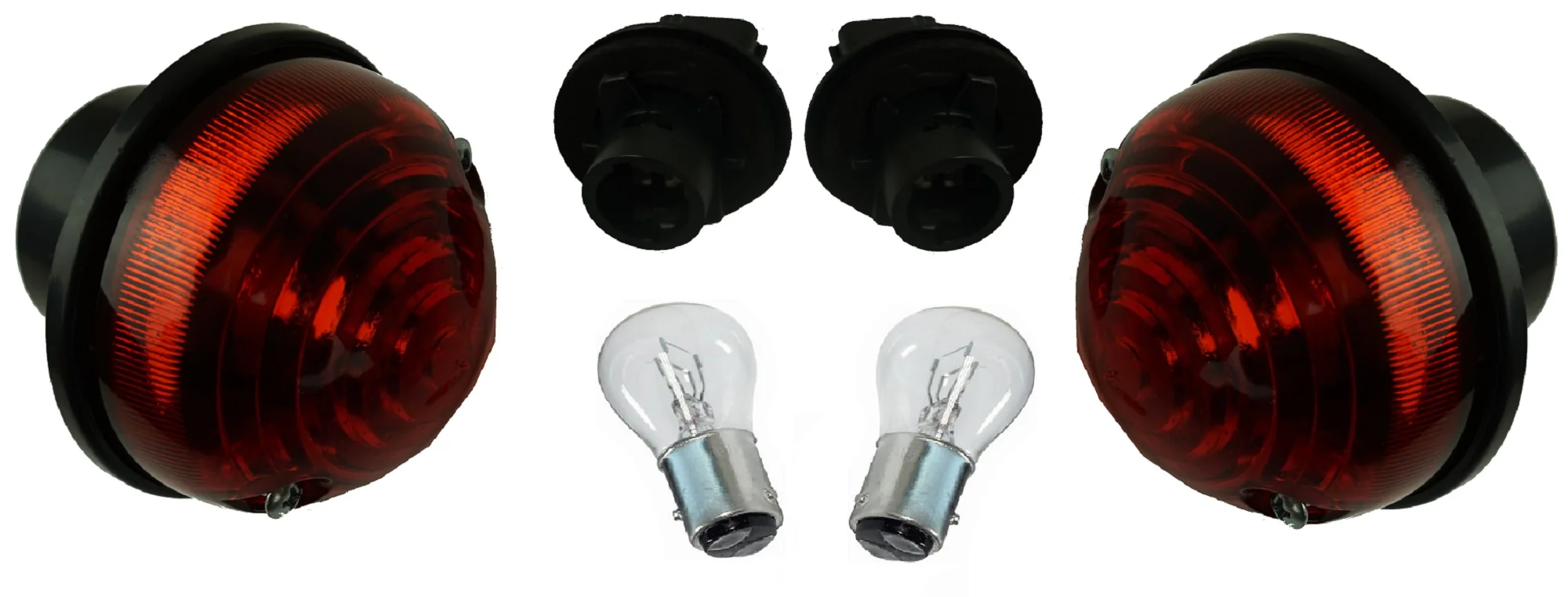

This listing is for a pair of brake/tail light lamp assemblies with bulbs for the original Land Rover Defender.

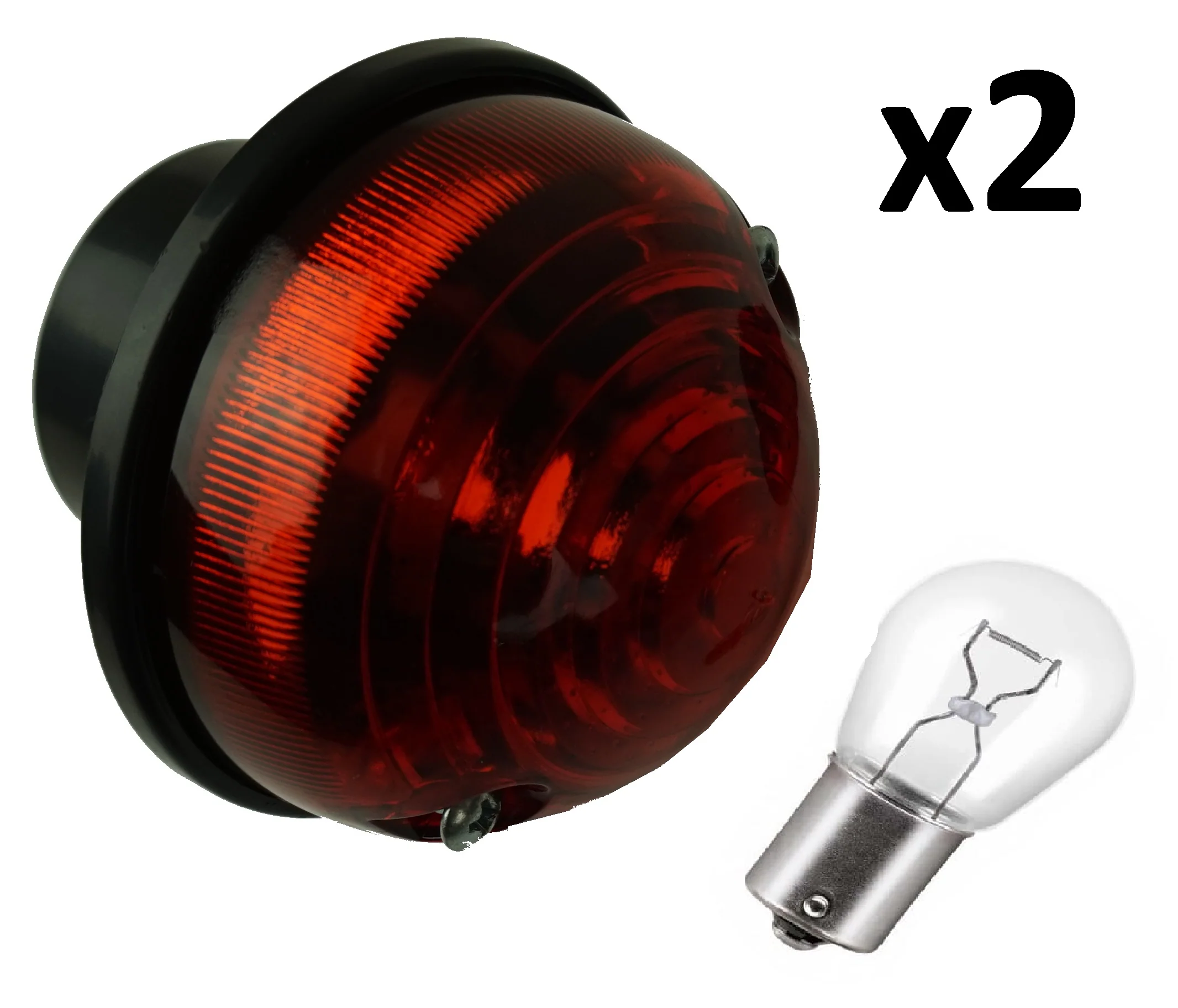

Each unit is supplied with a 12V 21W/5W bulb and 2 mounting screws. A new foam mounting gasket is also supplied with each unit.

The outer diameter of the light is 73mm.

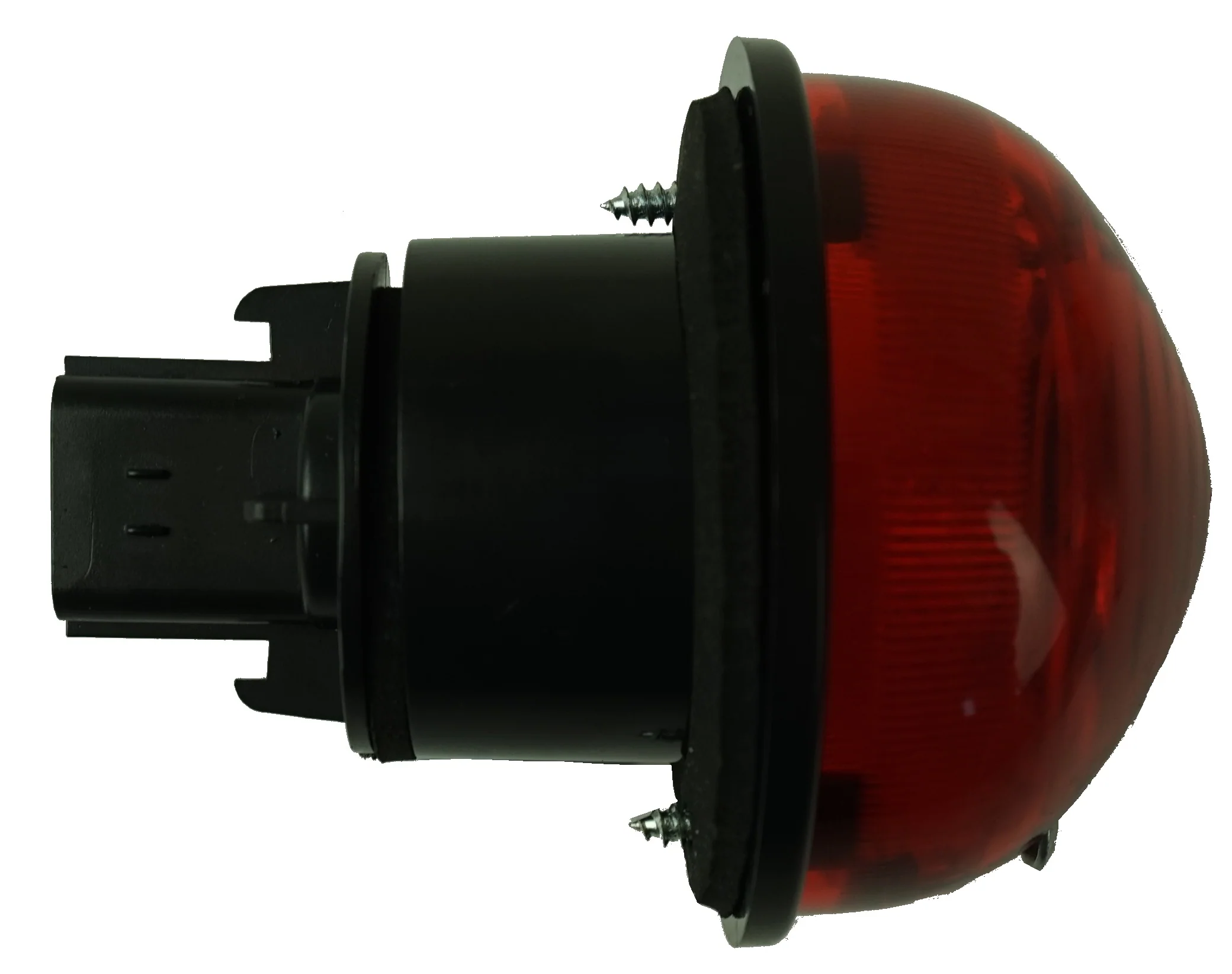

These lights fit to the panel work using 2 screws (see picture).

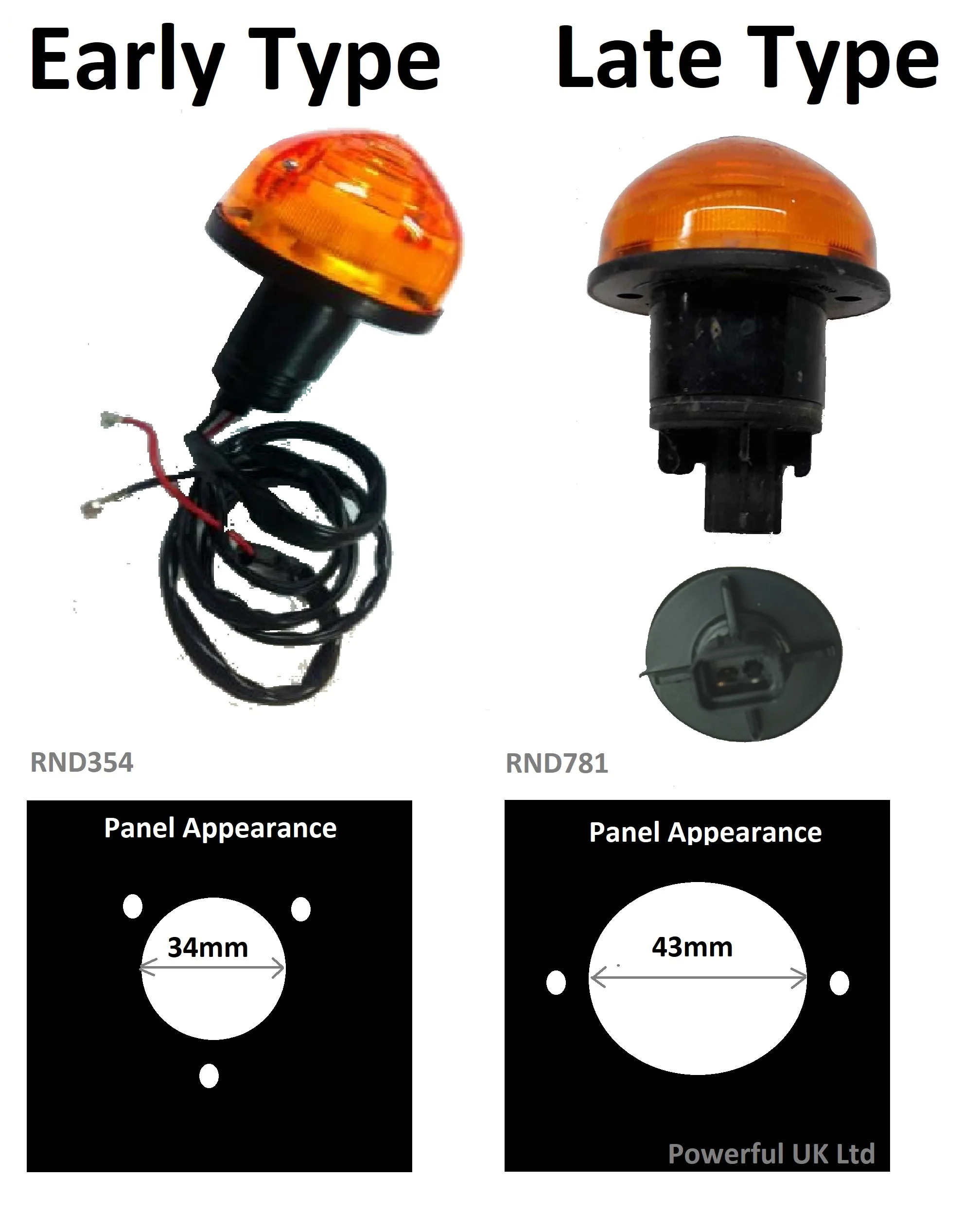

Please note there are 2 types of this lamp:-

EARLY Type (up to 1994)- The front lens is removable, the bulb is fitted from the front / fitted to the panel with 3 screws / wiring loom with bullet connectors.

LATE Type (1994 onwards)- Front lens is fixed / bulb is fitted from the rear / fitted to the panel with 2 screws / no loom, just connector moulded to the rear bulb holder.

This listing is for the LATE type.

These lights are E-marked (E11).

We also sell these lights in a different colour for indicator - see our other items

These are not genuine Land Rover items (this can be used as an alternative to Land Rover part number AMR6516 / LR048200).

See our part number EWL132 to purchase compaitble wiring loom.

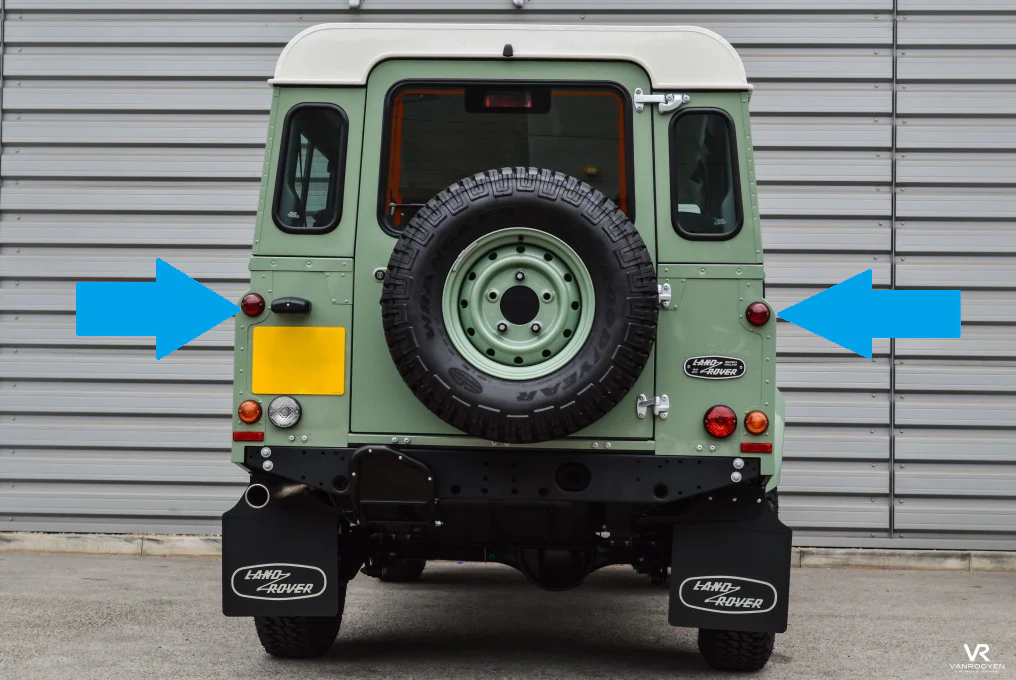

Which Vehicles will this fit ?

This will fit the original Land Rover Defender models.
