Morris Minor DRL Style LED Headlights - DRL Style - LHD

Crystal Halogen DRL style Headlamp Conversion kit

LHD ( France / USA etc )

Morris Minor

Upgrade the headlights in your Morris Minor to these Crystal Halogen LED DRL style ( Daytime Running Light ) headlights.

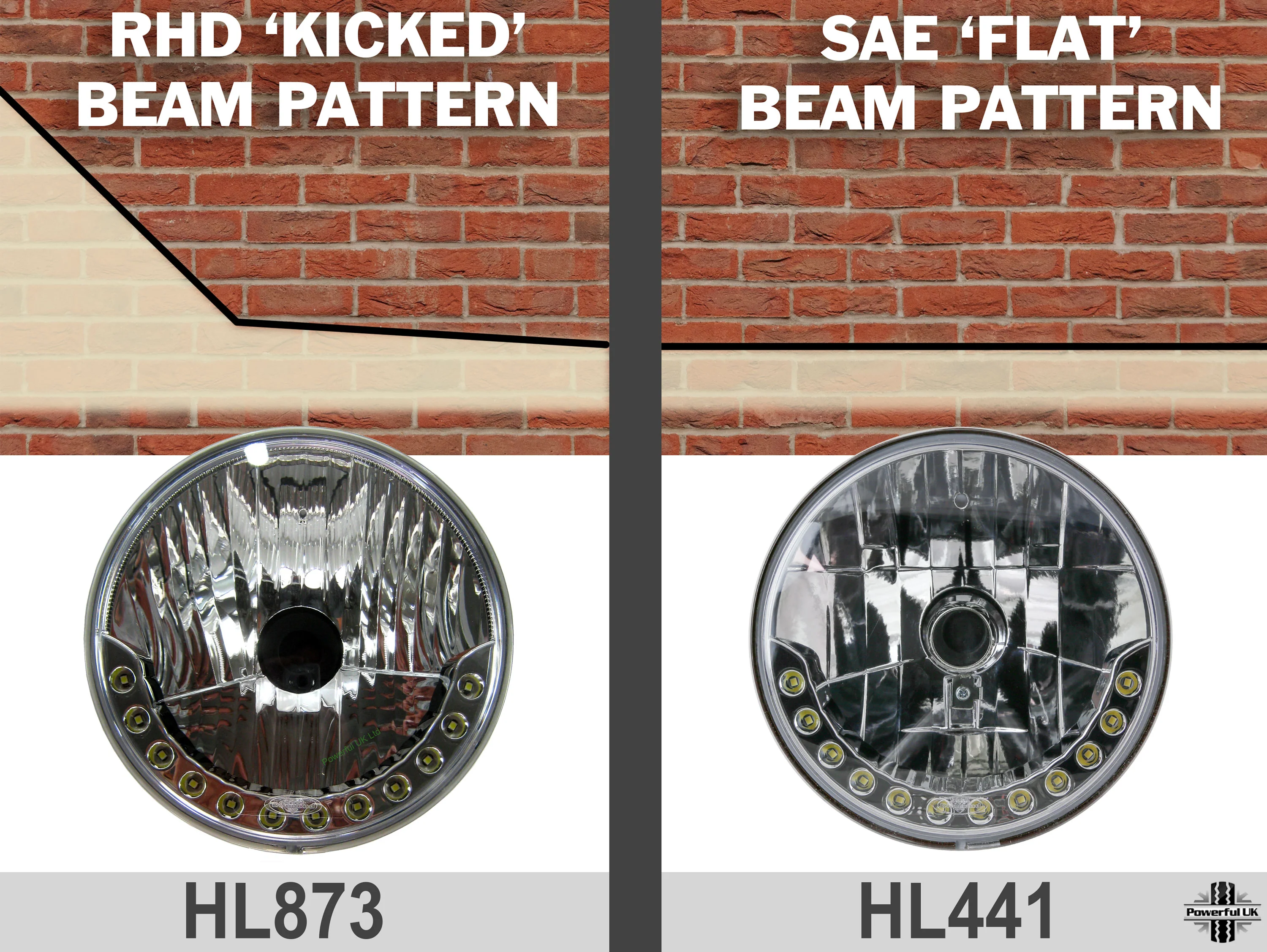

These are LHD / USA spec headlights and have a flat DOT/SAE beam pattern on dipped beam suited to LHD / USA regions.

For UK spec RHD lamps in this style see our other items.

Even if the LED is not your thing these lights have a superb light output on dip and main beam thanks to the beam pattern being set by the reflector not by the lens (as on the standard headlights)

The lens is smooth giving a cleaner sharper appearance to the lights.

These lights give up to 25% more light output than standard headlights even using the same bulb !

In addition to the better technology the reflector on these lights are made from plastic and so will not rust or corrode like the older metal ones.

The lens is made from a scratch resistant plastic.

These lights use Halogen H4 bulbs ( not included ) which you should have in your old lights ( unless you have sealed be units fitted )

These lights are not E Marked.

This listing is for a PAIR of headlights complete with LED side lights and rubber caps for the bulb ( no H4 headlight bulbs are included ).

We have run these lights with 90/100W H4 and even LED bulbs with no problems.

These lights will fit into Lucas metal bowls also Lucas and Wipac plastic bowls.

You can link the LED power wires to the sidelight wire or link to an ignition source of you want them to come on with the ignition.

Specification Summary

Lens - clear plastic

Reflector - Multi surface plastic reflector ( non rusting )

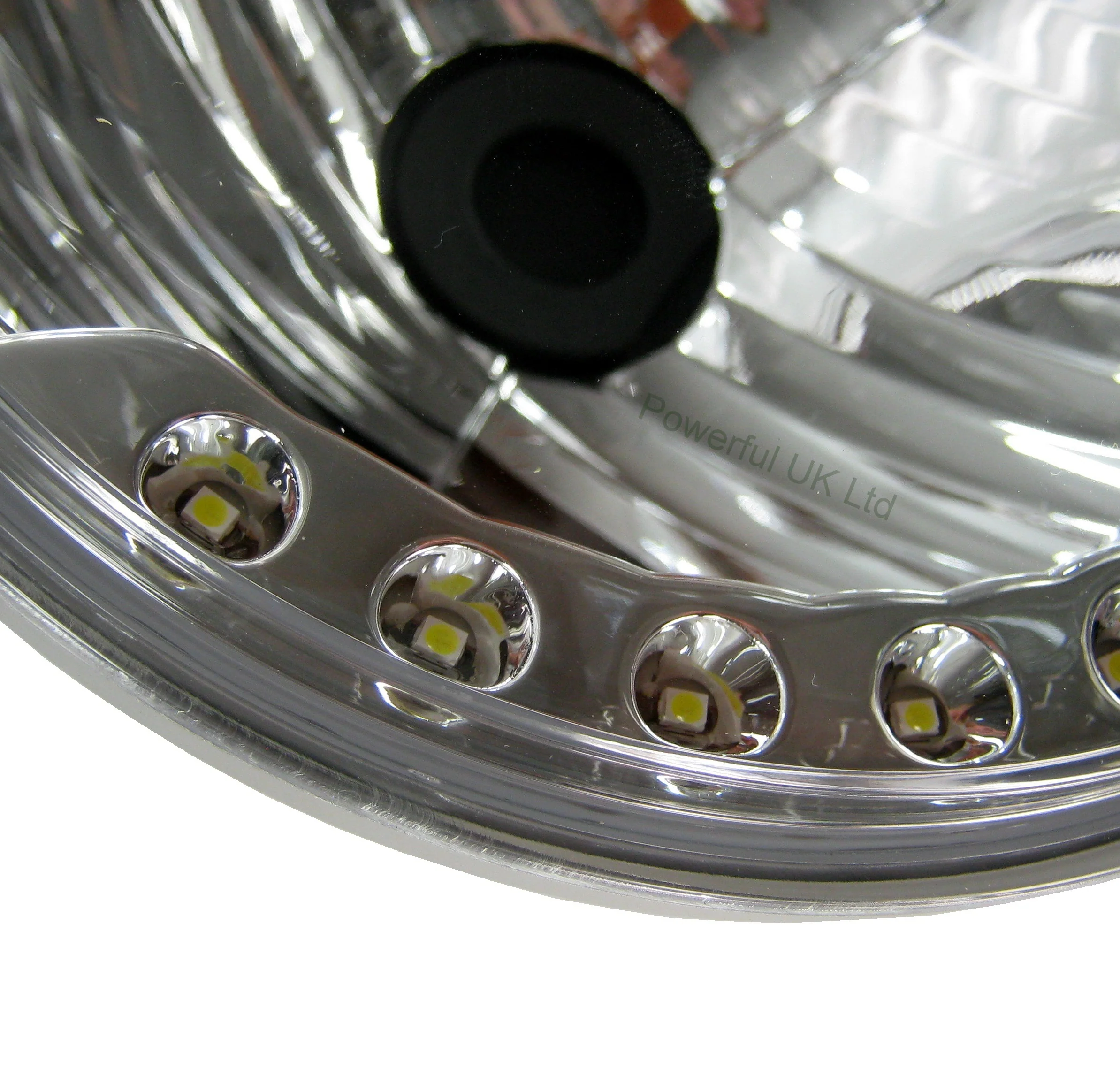

Side light - DRL style LED "smile" with 12 x 0.1w surface mount LED's

Bulb - Halogen H4 ( not included )

E Marked - No ( will pass MOT )

Fitting Details

Straight replacement for standard unit.

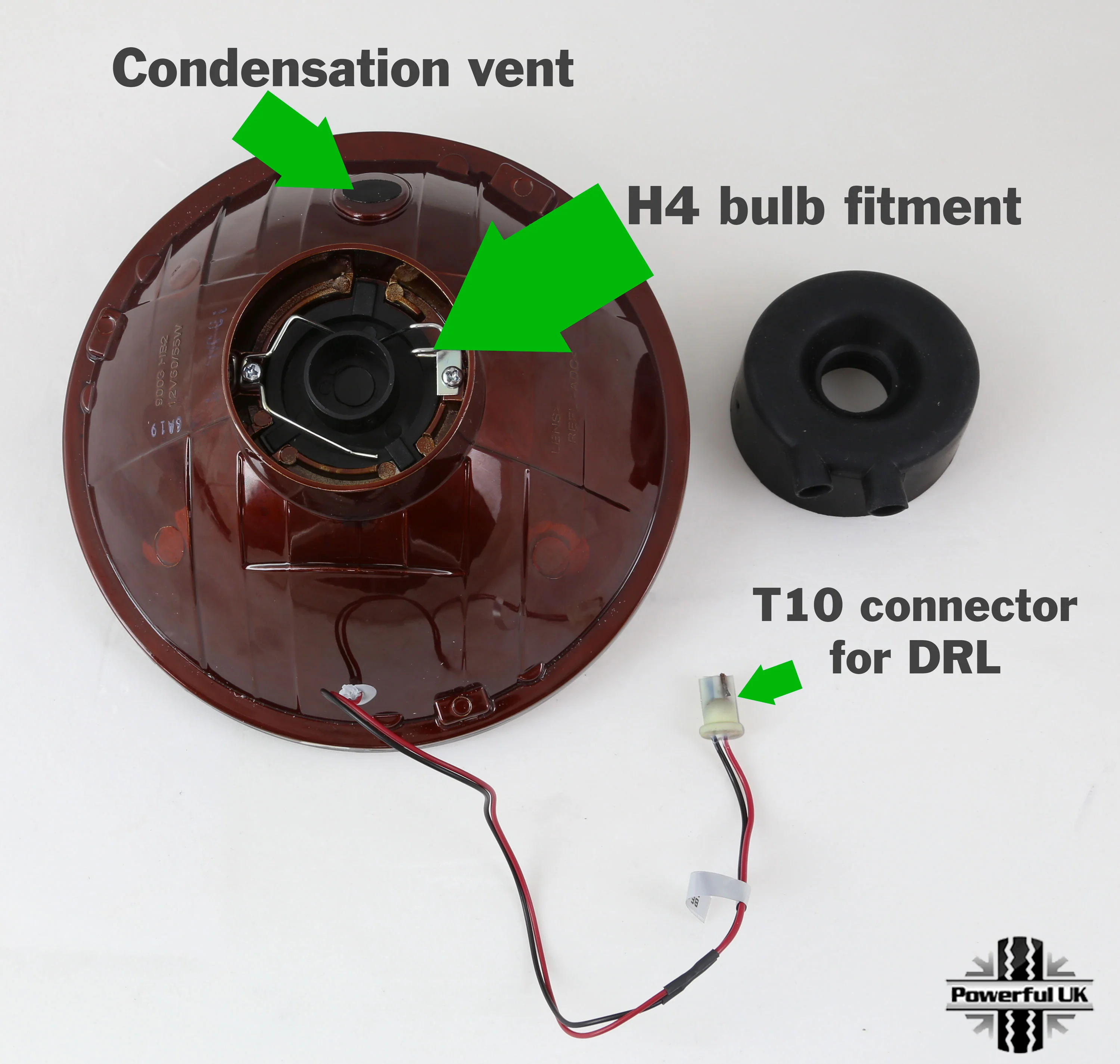

No change to headlight wiring or connector needed as the bulbs connection is the same for sealed beam and halogen H4 bulbs.

You will need to make a new connection for the LED lights - this can be to the side light wires or an ignition source.

Note - the left headlight and right headlight are both the same.

Which Vehicles will this fit ?

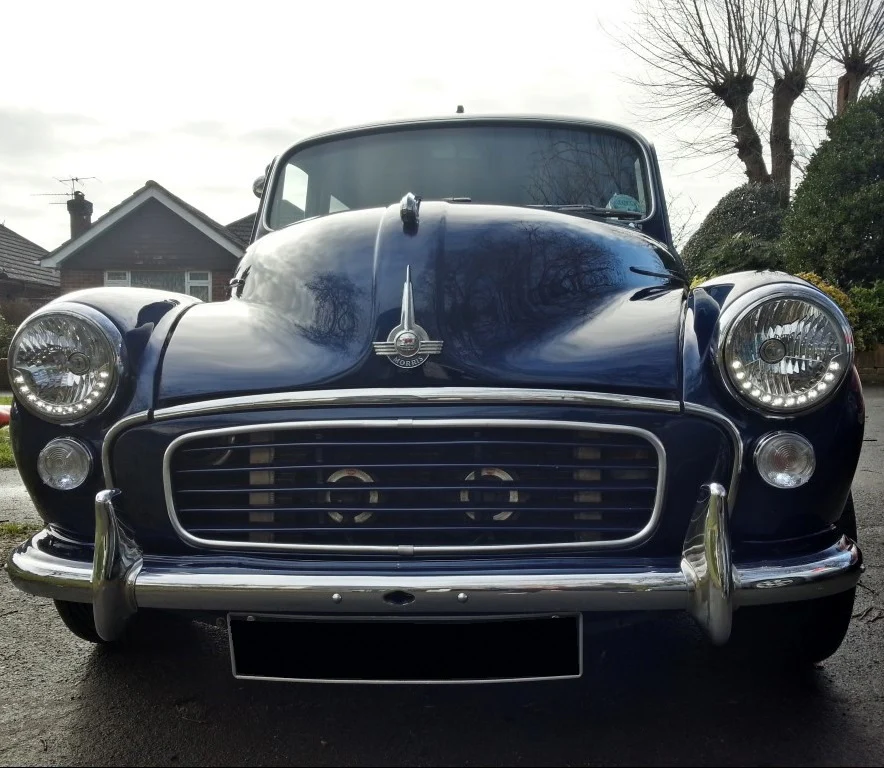

Morris Minor all models
