Light Bar Roof Mount Kit for Land Rover Freelander 2

40" Light bar Roof Mount Kit
for Land Rover Freelander 2

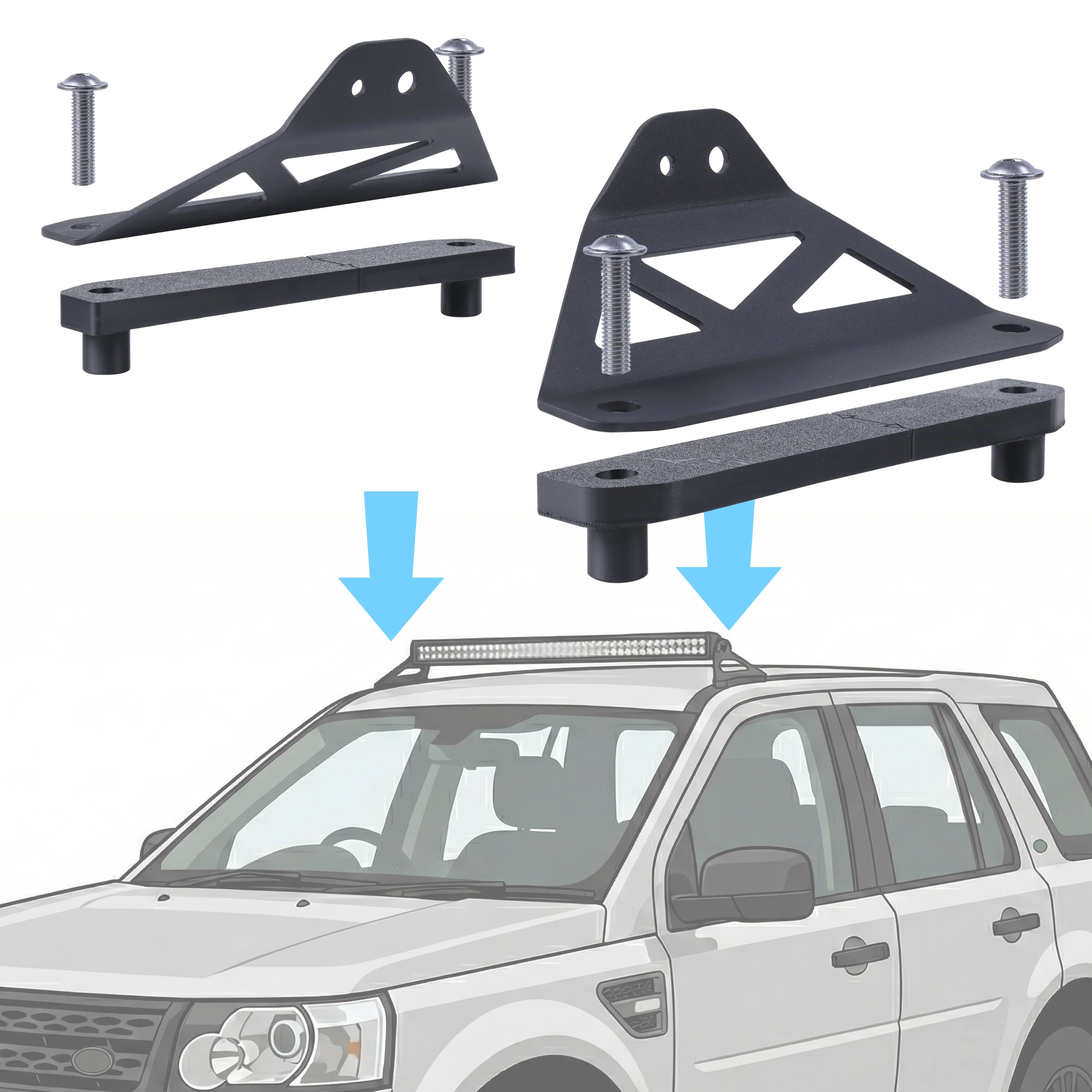

This is a light bar roof mount kit for the Land Rover Freelander 2.

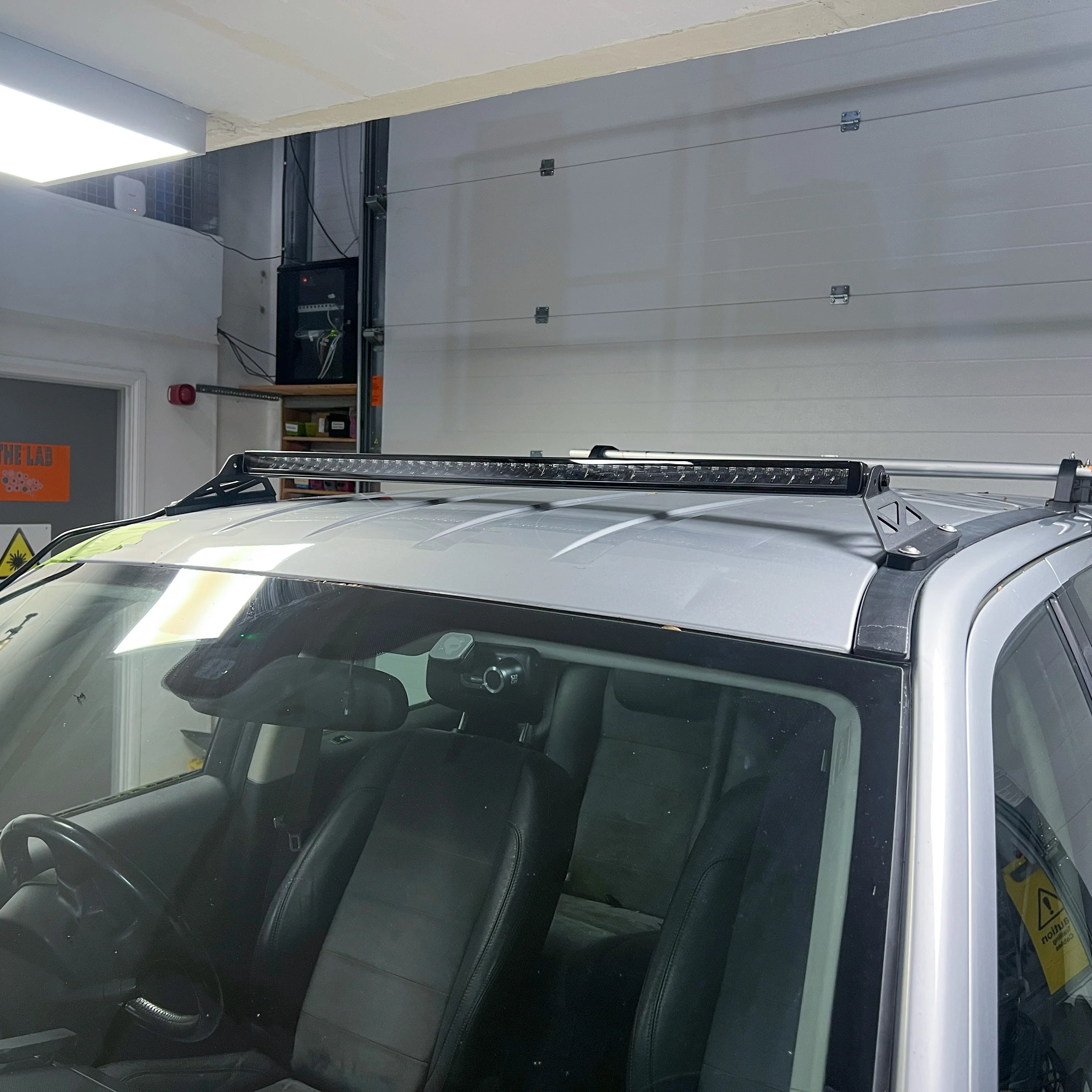

This will allow you to mount a 40" light bar to the roof of your vehicle utilising the existing roof rack mounting holes.

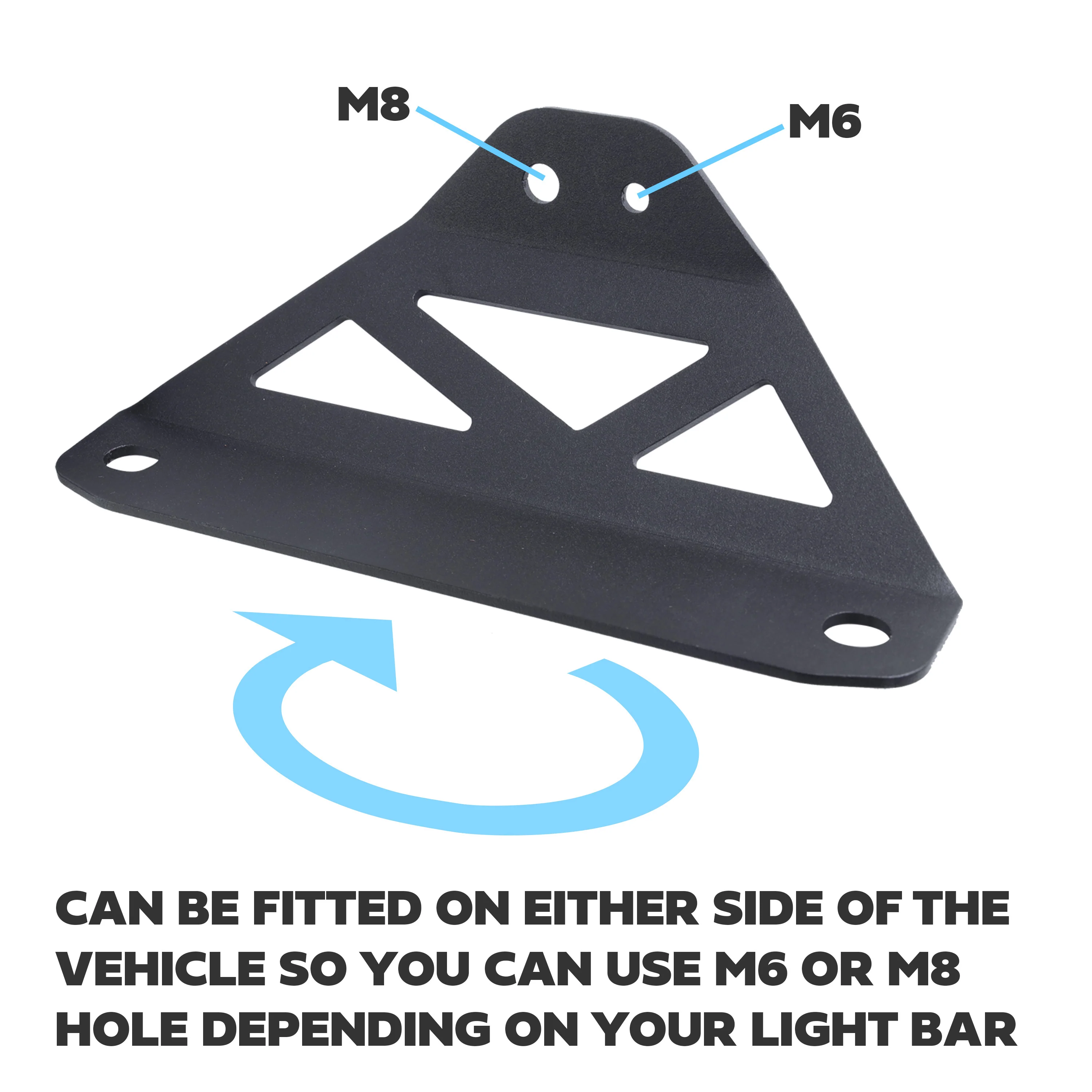

Each bracket has an M6 and an M8 hole and can be mounted either way on the vehicle so you can have your required size hole at the front.

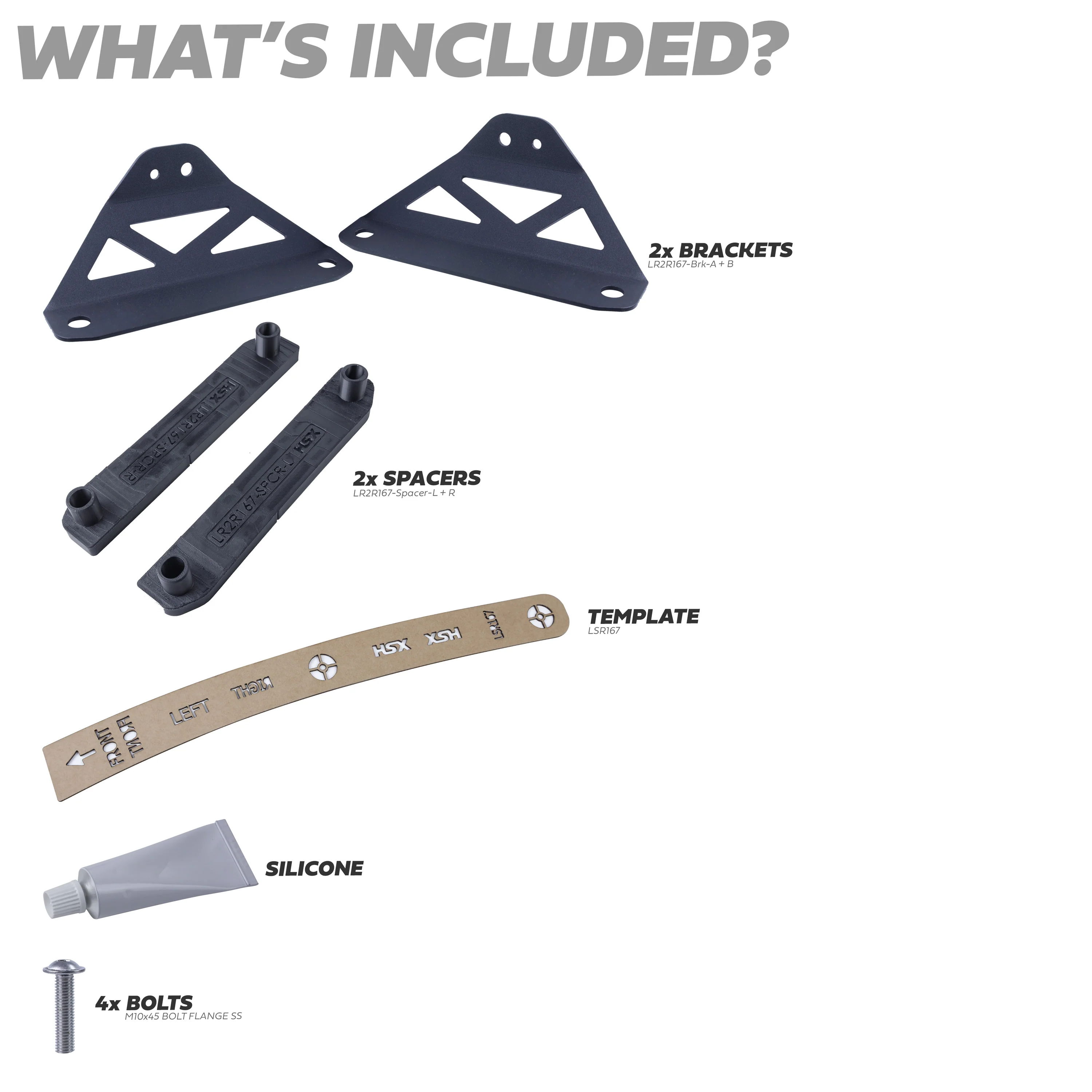

The kit includes:

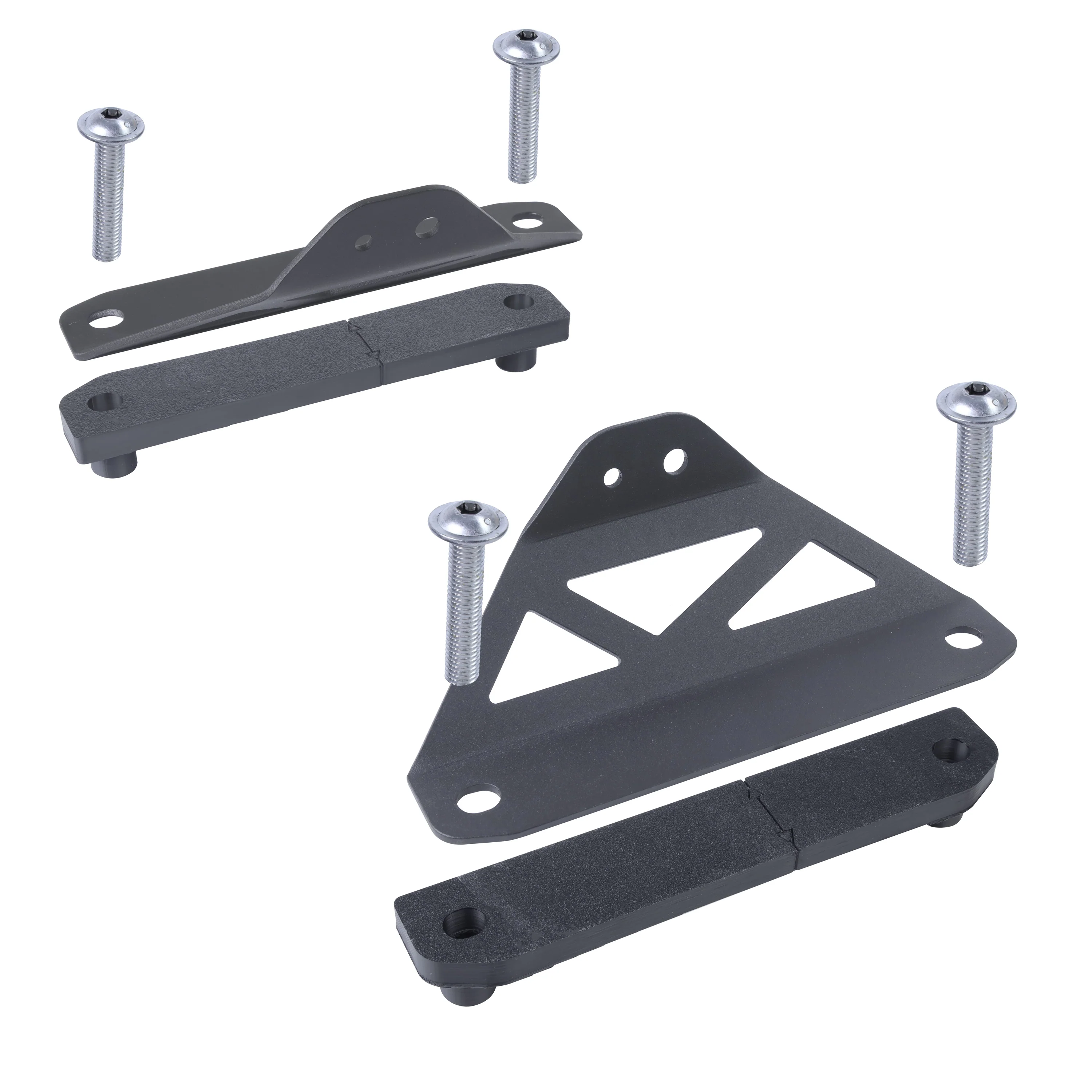

• 2x Aluminium brackets with M6 & M8 holes
• 2x 3D printed spacers
• 4x M10x45 stainless steel bolts
• 1x Tube of silicone
• 1x Cardboard drilling template

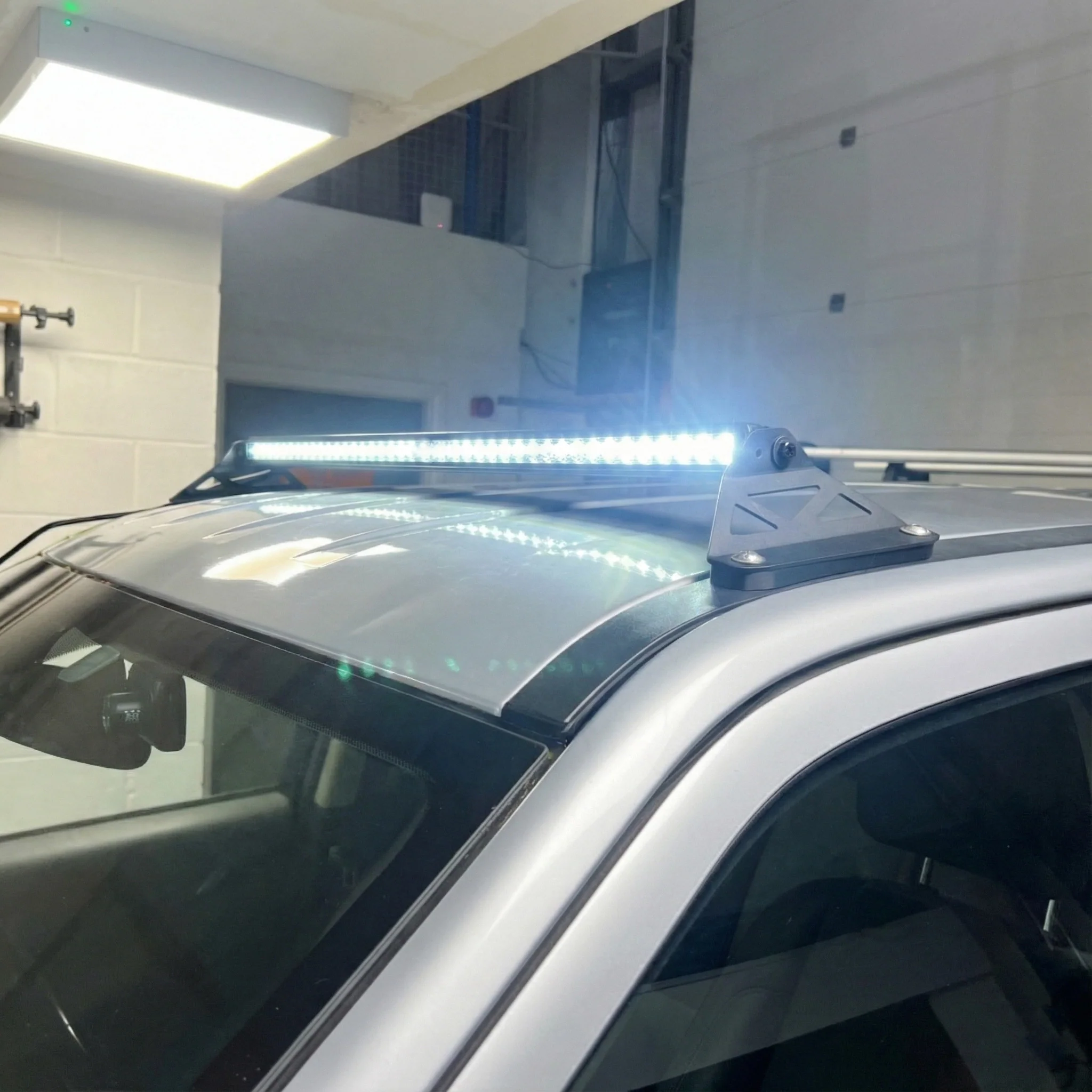

We have used a Hella light bar in our video but you can use any 40" light bar.

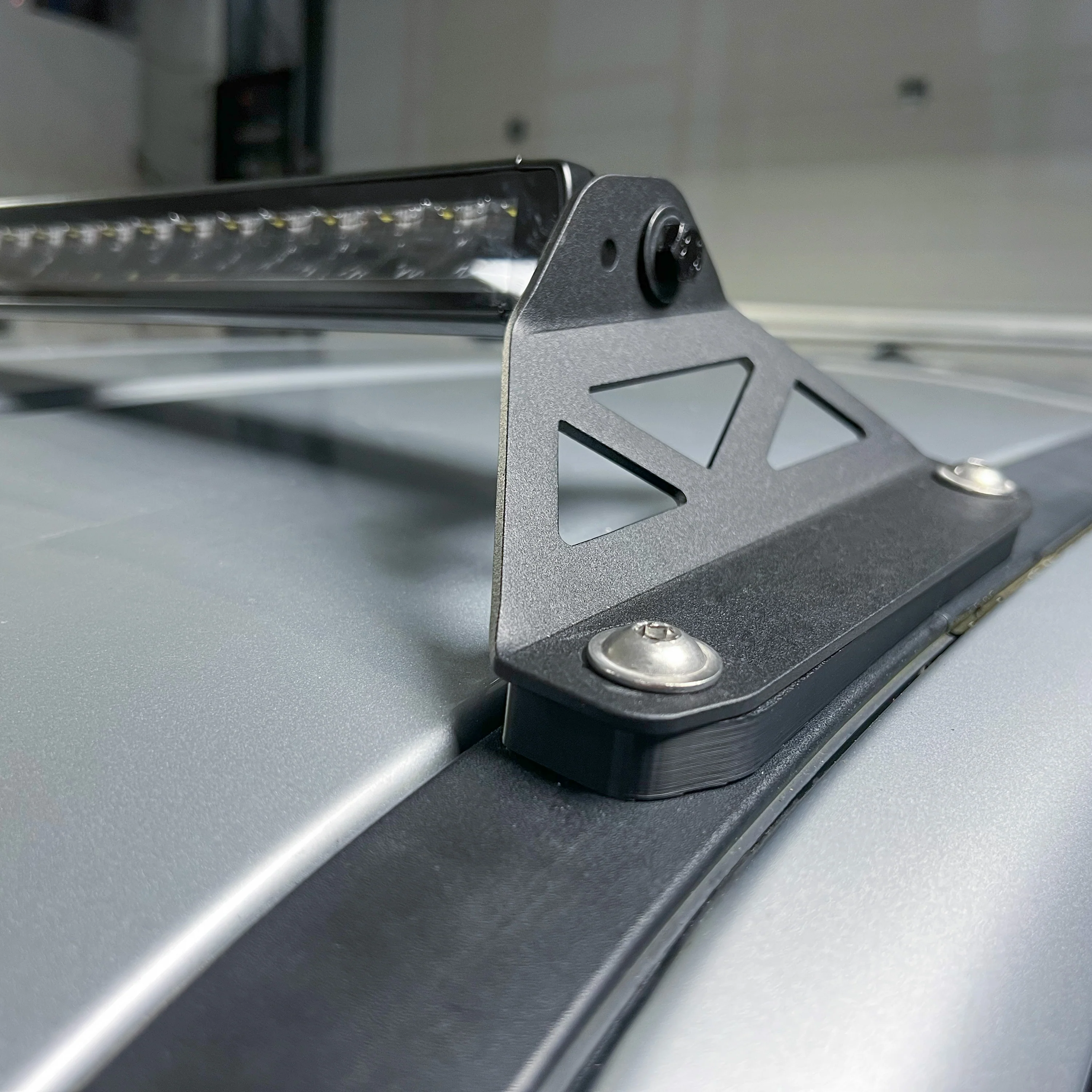

The Aluminium brackets are powder coated black to match most lightbars.

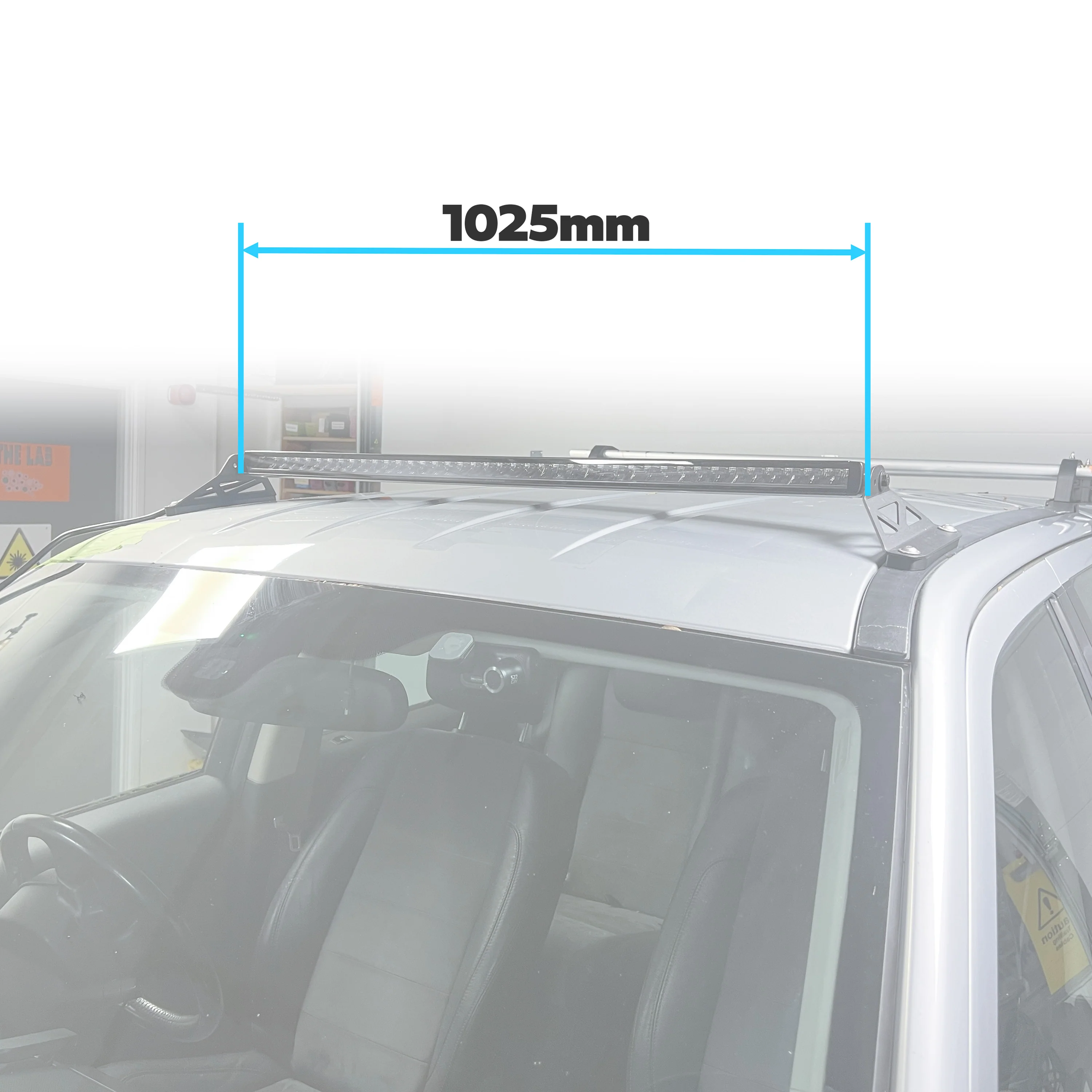

The actual gap between the brackets is 1025mm which should be suitable for most 40" light bars - you can use washers to pad any gap as we have done in the video.

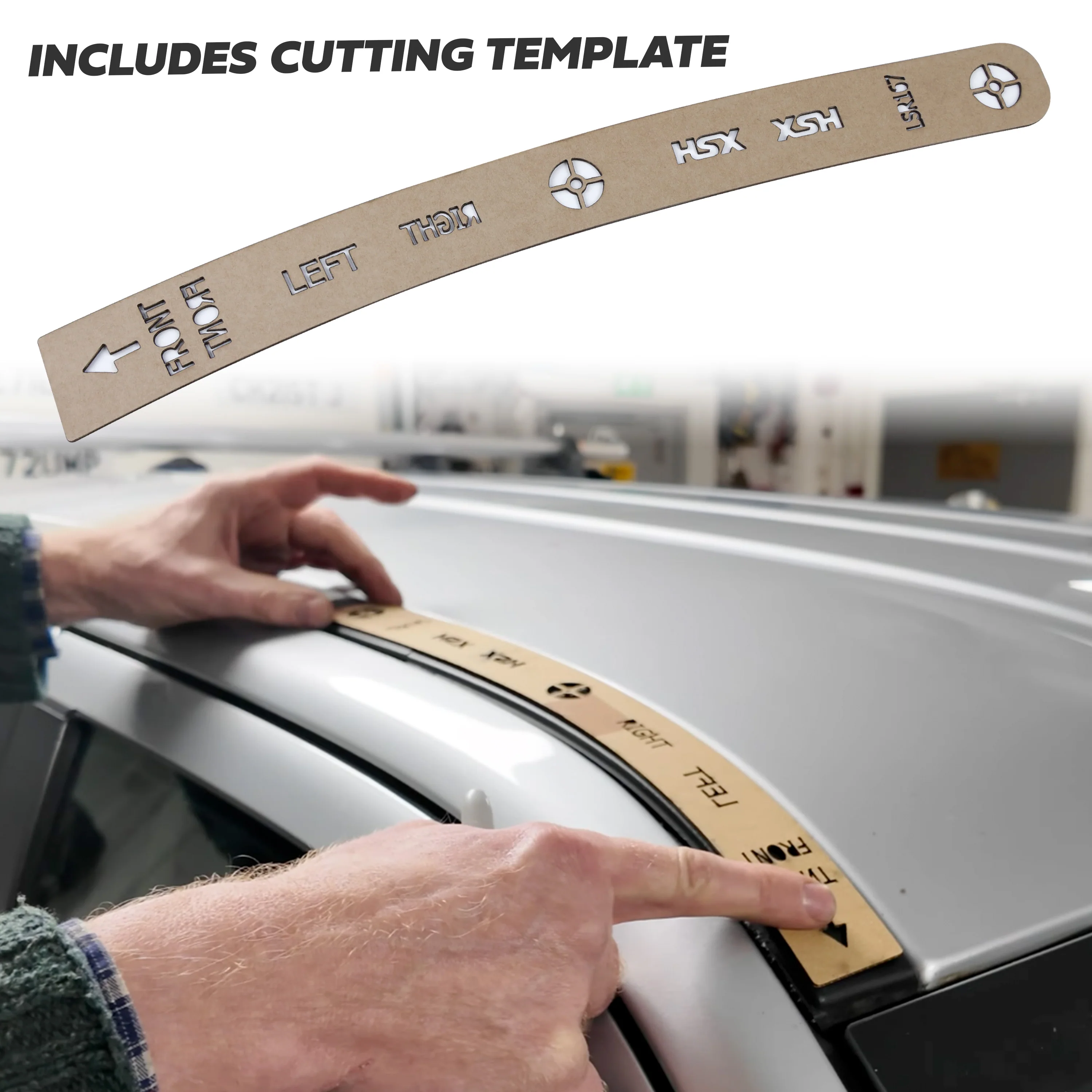

You will need to cut an access hole in the plastic trim in the roof to reveal the mounting holes, we provide a cutting template for this.

NOTE - this item will not fit if you have the factory roof rack fitted as it uses the roof rack holes as mounting points.

This is not a genuine Land Rover item.

Fitting details

Which Vehicles will this fit ?

This item WILL fit the Land Rover Freelander 2 WITHOUT a roof rack fitted

This item WILL NOT fit if you have a roof rack fitted as this mount uses the same fixings points as the roof rack
