Front Bumper fog & DRL 2 in 1 LED lamps for Range Rover L322 2010 ( Type 2 )

Front Bumper 2 in 1 LED DRL & Fog Lamp Kit

for Range Rover L322 2010 -2013.

This listing is for a pair of replacement LED fog lights that are ready to fit the Range Rover L322 (2010 -2013).

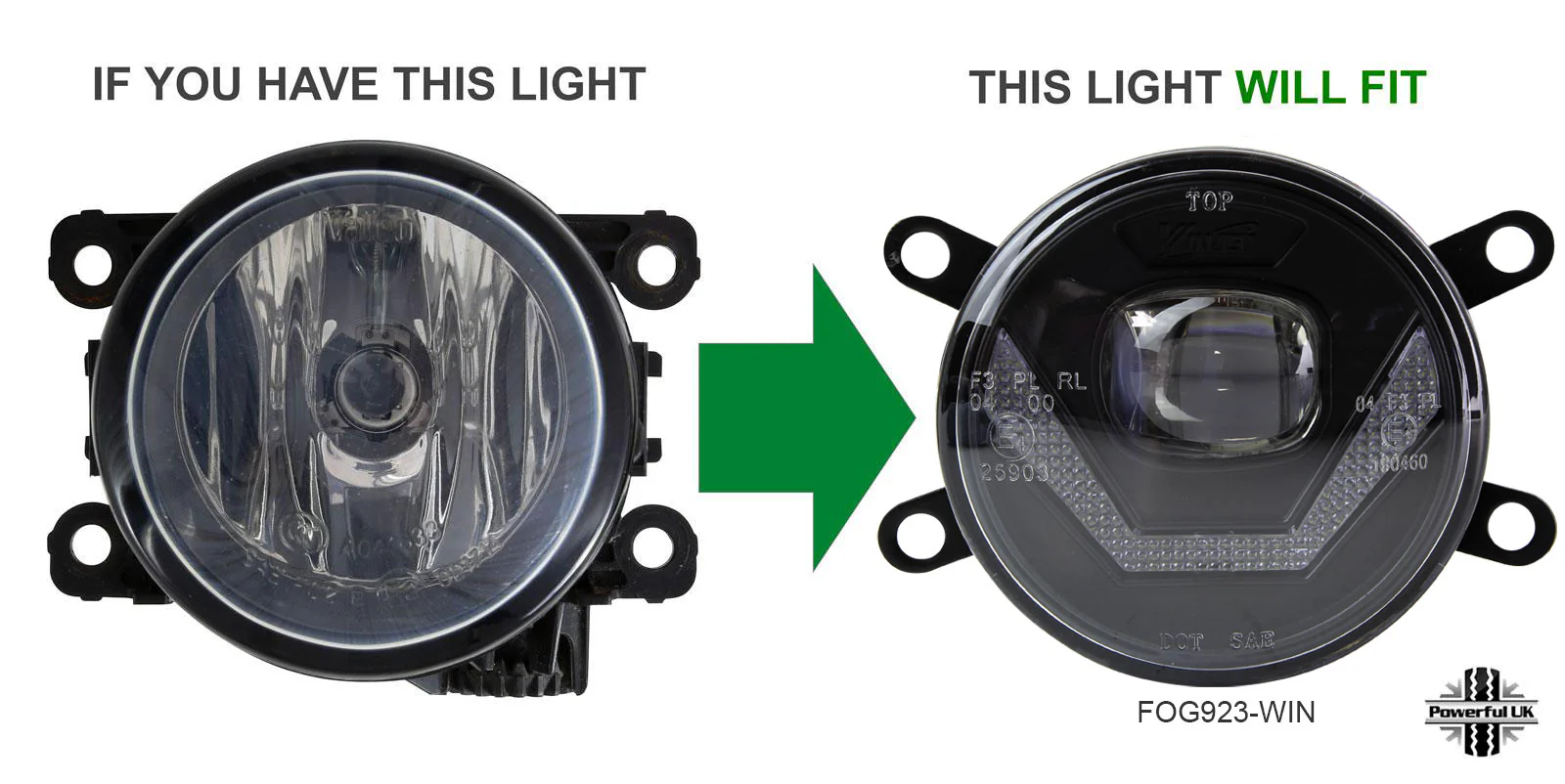

These lights have been designed to be a direct replacement for the standard FOG Lamps.

These items have 2 separate functions :-

a) FOG LAMP - this is the central part of the lamp and it has a powerful LED lamp producing a clear white light.

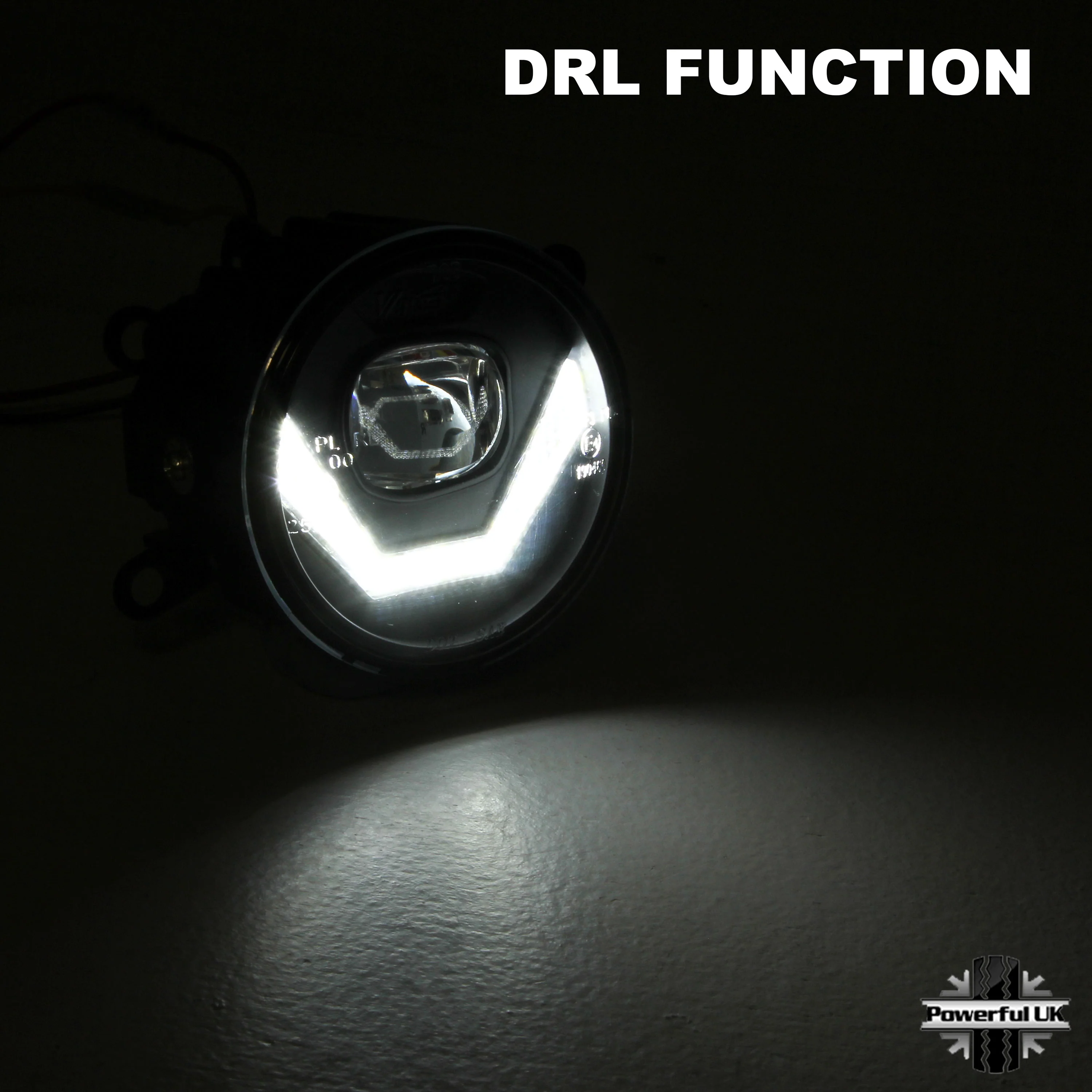

b) DRL LAMP - this is produced by the LED around the outer edge of the lamp unit. ( this can be linked to an ignition live signal )

The lamp consumes the following power: DRL= 8.5 watts for both sides & FOG= 10 watts per side.

The rear of the light unit is made from aluminium with a finned heatsink design to dissipate heat.

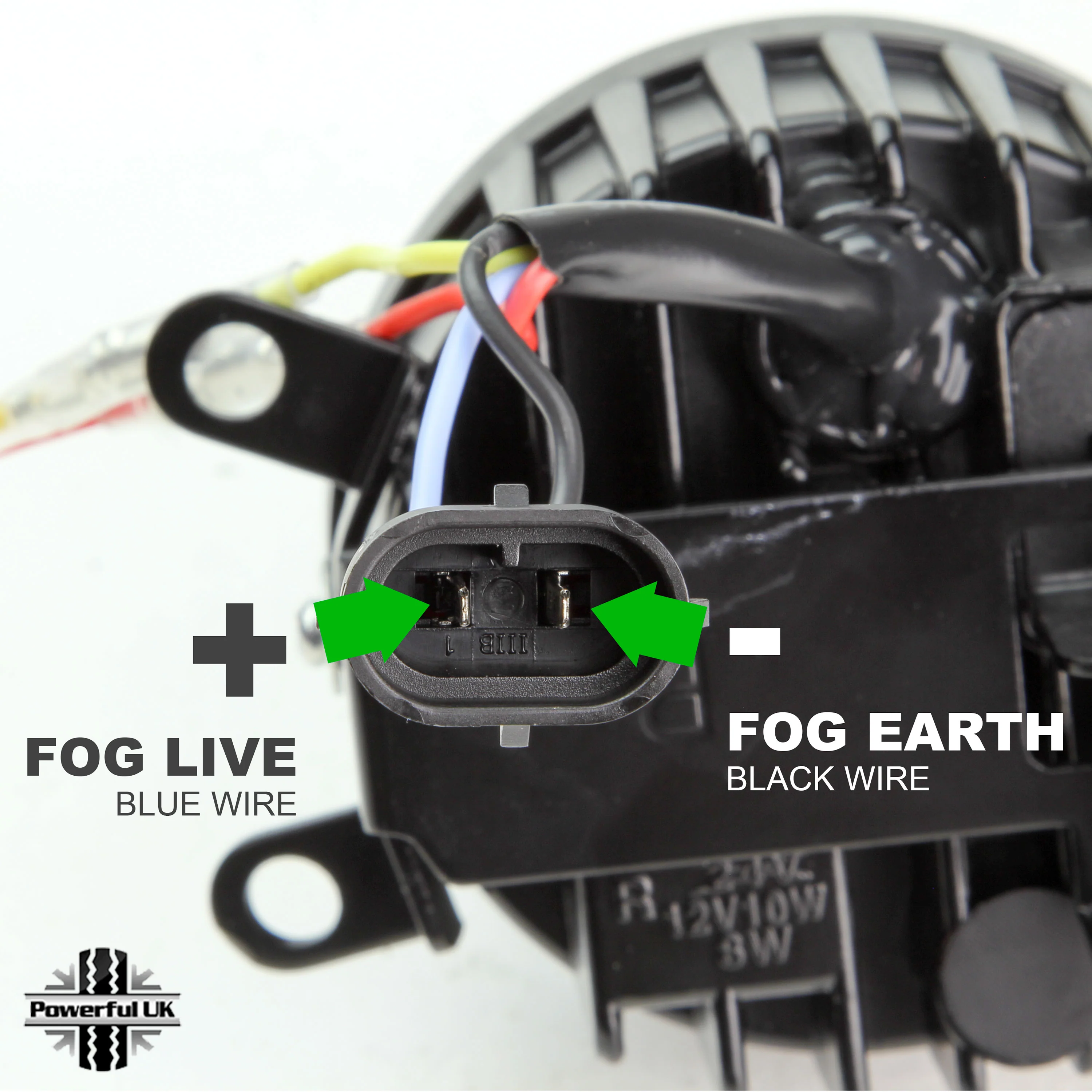

There is a standard H11 connector pre-fitted to the light units so they are just plug and play installation.

The DRL function needs 2 wires connecting into your electrical system: A positive ignition feed and a positive feed from your headlight wiring (to switch DRL off when headlights are turned on).

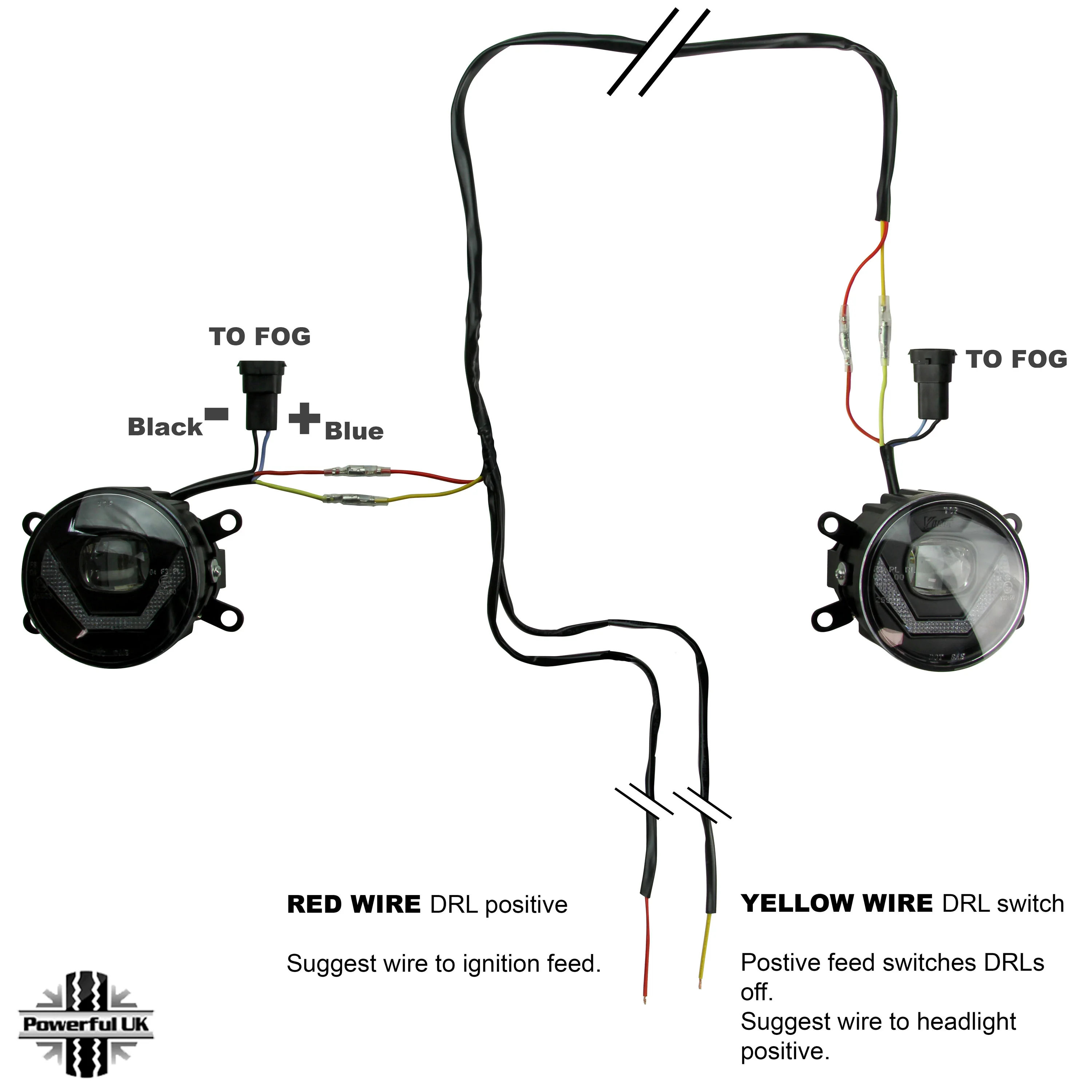

Scotch lock wiring connectors are supplied for simple installation - see photos for wiring diagram.

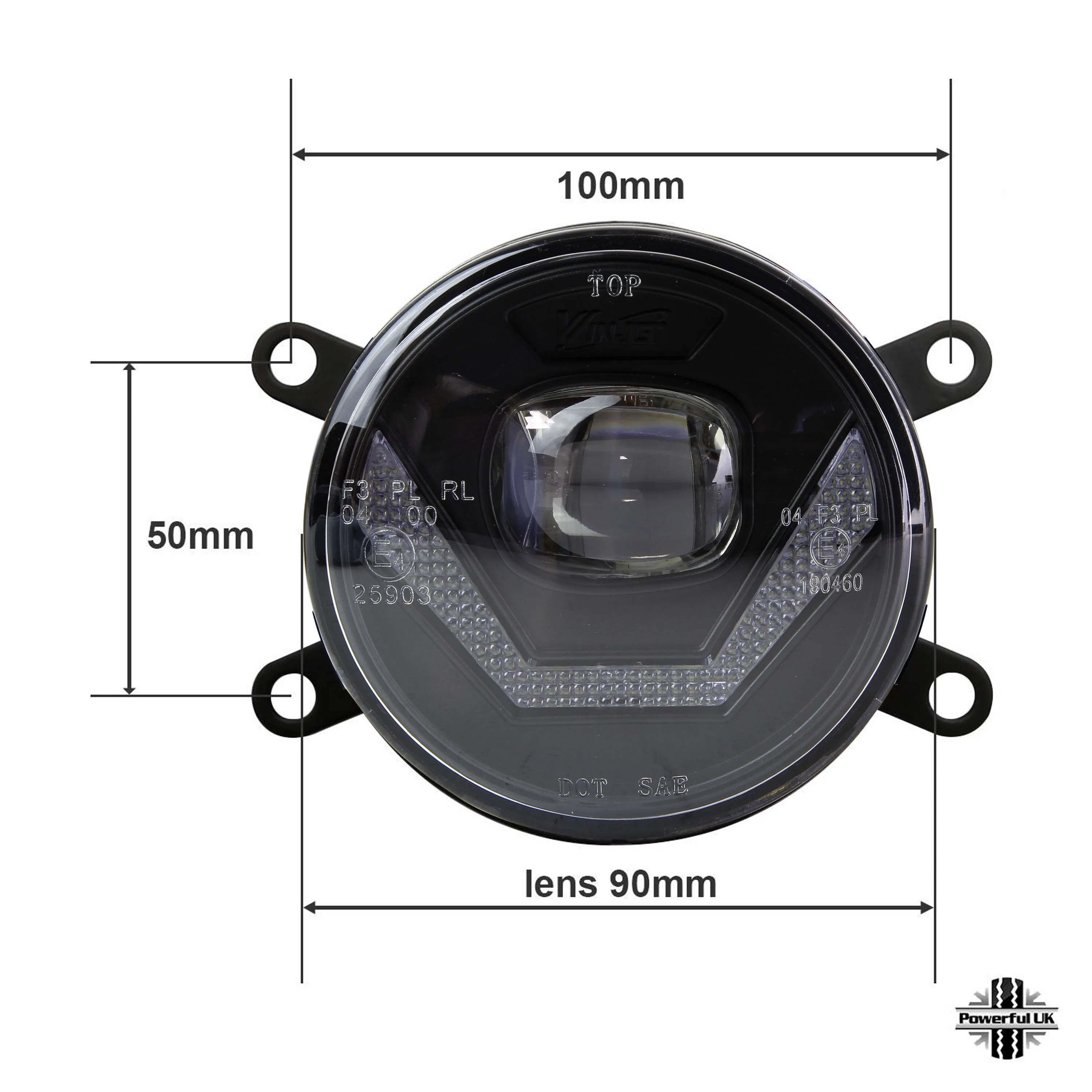

The approximate diameter of this lamp lens is 90mm across.

These units have a plastic lens that makes them less likely to crack than glass.

These lights are E Mark approved.

This is not a genuine Land Rover item.

Which Vehicles will this fit ?

This item will fit all Range Rover L322 models from 2010 on all models including Autobiography models.

These WILL NOT fit the older Range Rover L322 from 2002 -2009 ( unless fitted with a 2010 front bumper conversion )
